ME-92® Biocompatible Chromium Coating
Biocompatible chrome plating for medical devices and surgical instruments
Medical Coating
What Is ME-92® Biocompatible Chromium Coating?
ME-92 is Armoloy's biocompatible chromium coating engineered for medical devices, surgical instruments, and precision medical components. Certified to ISO 10993-1 for biocompatibility, this functional surface treatment improves wear resistance, corrosion protection, and lubricity without altering the critical dimensions of the base material. First introduced in 1992 as the pioneer in biocompatible chromium technology, ME-92 continues to help medical manufacturers enhance device performance and maintain strict surface integrity in demanding clinical environments.
ME-92 is applied through a tightly controlled electroplating process that deposits a thin, uniform layer of chromium with a proprietary microcracked surface structure. Because it is applied at low processing temperatures, the coating preserves both the substrate’s mechanical integrity and its precision geometry, eliminating the need for post-plate machining on complex mating features.

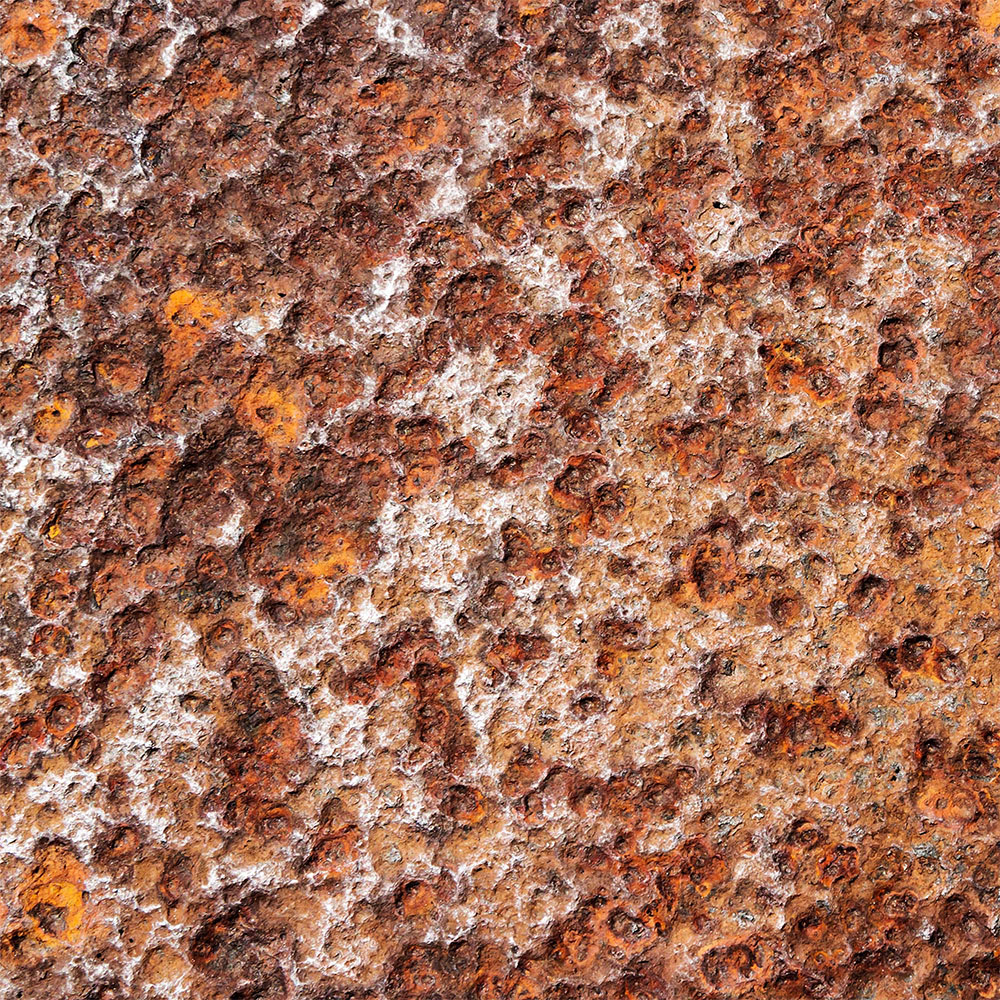

Beyond maintaining dimensional accuracy, ME-92’s hard, low-friction surface minimizes mechanical wear and surface degradation during high-cycle use. This durability extends to chemical exposure, where the chromium layer protects underlying metal from pitting and corrosion caused by harsh cleaning agents and repeated sterilization cycles. The inert chromium surface also forms a protective barrier that isolates patients and clinicians from base-metal allergens such as nickel, while its hydrophobic finish supports cleanability by limiting moisture retention and facilitating contaminant removal in cleanroom, clinical, and laboratory settings.
ME-92 is available in satin, platinum, and non-reflective finishes to meet specific functional and aesthetic requirements across a wide range of medical applications.
Performance Characteristics
- Surface hardness up to 72Rc
- Deposit thickness ranging from 0.00004” to 0.001” (1.016 to 25.4 µm)
- Processing temperature < 160°F (<71°C)
- Bond strength of 125,000 PSI
- Corrosion resistance tested to AMS 2438 per ASTM B-117
- Certified biocompatible to ISO 10993-1
- Porosity tested per AMS 2460
- Withstands temperatures of -400°F to 1600°F (-240°C – 870°C)
- Thermal expansion of 2.7 – 4.6 (10¯⁶/°F)
- Up to 56% reduction in coefficient of friction
- Wear resistance less than 1.2 TWI per AMS 2438
Values shown are typical; final results depend on substrate, geometry, and finishing requirements.
Engineered for Reusable Medical Instruments
Reusable medical devices are subjected to conditions that many industrial coatings never encounter. Surgical instruments and precision medical components must withstand repeated articulation, aggressive cleaning, chemical disinfection, and sterilization while maintaining dimensional accuracy and reliable surface performance.
ME-92 is engineered specifically for these demanding environments. The ultra-thin chromium deposit achieves a surface hardness of up to 72 Rc while preserving sharp cutting edges, close tolerances, and complex mating geometries for long-term mechanical durability. For complex components, precision masking allows the coating to be selectively applied only to functional wear areas, preserving critical dimensions while preventing coating buildup on adjacent features.
The coating also improves the performance of moving assemblies. By reducing the coefficient of friction by up to 56%, ME-92 minimizes sliding resistance, adhesive wear, and galling, while a bond strength of 125,000 PSI helps maintain coating integrity through continuous mechanical stress and sterilization cycles.
Designed for repeated clinical use, ME-92 withstands steam autoclaves, STERRAD®, STERIS SYSTEM 1®, EtO, and bleach exposure without staining, pitting, or surface degradation. Its hydrophobic surface helps maintain consistent performance and easy cleanability throughout repeated processing cycles in clinical, laboratory, cleanroom, and pharmaceutical packaging environments.
Compare Armoloy Coatings
| Thin Dense Chrome
Flagship
|
Nickel | Hard Chrome | Xylan | Molybdenum Disulfide | |
|---|---|---|---|---|---|
| Common Industries | Precision Bearings, Medical Instruments and Devices, Robotics, Linear Motion Systems, Molds, Dies, and much more. | Packaging, Blister-Pack Molding, Automotive, Electronics, and more. | Shafts, Molds, Dies, Hydraulic and Pneumatic Rods, Industrial Rolls, and more. | Fasteners and Threaded Components, Molds, Pumps, Pistons, Valves, Marine Equipment, and more. | Microelectronics, Photovoltaics, Automotive, Sliding Applications, Vacuum Systems, and more. |
| Generally Used For |
Corrosion Resistance
Wear Resistance
Improves Machine Performance
|
Corrosion Resistance
Wear Resistance
|
Wear Resistance
Corrosion Resistance
|
Release
Corrosion Resistance
|
Release
Lubricity
|
| Advantages | Thin Dense Chrome is a pure metallic zero valence chromium coating that prevents metal failures and improves machine performance. | Nickel coatings are renowned for their corrosion and wear resistance. | Hard chrome plating is selected for applications that require surface durability, dimensional restoration, and reliable performance under load and motion. | Xylan is built for extreme environments where corrosion resistance, friction and wear reduction, and buildup prevention are paramount. | Molybdenum Disulfide is known for its exceptional lubrication, high load-bearing capacity, and temperature resistance. |
| Thickness |
1.27 – 25.4 µm
0.00005″ – 0.001″
|
2.54 – 76.2 µm
0.0001″ – 0.003″
|
25.4 – 762 µm
0.001″ – 0.03″
|
12 – 38 µm
0.0005″ – 0.0015″
|
5.08 – 7.62 µm
0.0002″ – 0.0004″
|
Certifications
- SAE AMS2438 Plating, Chromium Thin, Hard, Dense Deposit
- Aerospace Material Specification SAE AMS2406
- Aerospace Material Specification SAE AMS2460 | AMS-QQ-C-320, Chromium Plating (Electrodeposited)
- USP Class VI
- Tripartite/ISO
- Anti-microbial
- Sterilization Procedures Including:
- Steam Autoclave
- STERIS SYSTEM 1
- STERRAD Sterilization
- Gamma X Ray
- Bleach Exposure
- Boiling
- Detergent scrubbing
- STERIS EtO
- Cytotoxicity tested
- Hemolysis tested
- Intracutaneous tested
- Pyrogen tested
- Systemic Toxicity tested
ME-92® Finish Comparison
ME-92® Medical Coating is available in three finishes – satin, non-reflective, and platinum
ME-92 Features & Benefits
Biocompatible
Evaluated for biocompatibility for use in medical devices and instruments, as well as clean-room applications
Absolute adhesion to base material
Maintains cutting edges and provides a hard, scratch resistant, nonstick, easy to clean surface
Hydrophobic
Arrests moisture and water buildup, further enhancing corrosion resistance
Chemical resistant
Compatible with caustic sterilization procedures
Anti-microbial surface
Designed for cleanability; helps reduce buildup of harmful bacteria
Diverse appearances
Three finishes are available to suit your specific application: non-reflective, platinum, and satin
Completely inert
Will not cause or promote change in structure, maintaining component integrity
No sharp edge buildup
Minimizes dimensional change
Improved fatigue life
Hard surface of chromium reduces surface roughness, increasing fatigue life in certain components
Temperature resistant
Chrome coatings perform well at high temperatures, maintaining their protective properties
Low friction
Significantly increases life of rolling and sliding applications
Barrier against base metal allergens
Eliminates patient sensitivity to base metals such as nickel
Additional Metal Treatments
Why Partner with Armoloy?
Armoloy supports your project from concept to production with surface engineering expertise built around real-world performance needs. Whether you are designing a new component or solving a failure in the field, our team can help identify the right coating solution, validate its performance, and support a successful production launch.
Research & Development
Fully equipped R&D plating lab for test runs, prototyping, and continual development of our plating technologies. Our turnkey approach ensures high-quality outcomes for your project.
Process Development & Validation
Support from design to product launch with coating selection, prototyping, testing, PPAP validation, and plating production on any scale. We also support a range of ASTM and AMS test methods with a Nadcap-certified laboratory.
Fulfillment
Armoloy ensures the development of a robust plating process that can be distributed to one of our 15 plating facilities. We’ll handle prototyping, process validation, and much more.
Explore Further
Learn More About Medical Coatings:
Frequently Asked Questions
Reusable medical instruments must maintain precise dimensions and reliable surface performance through repeated use, cleaning, and sterilization. ME-92 combines an ultra-thin chromium deposit with high hardness, low friction, and strong adhesion to help preserve cutting edges, articulating surfaces, and close tolerances while resisting wear, corrosion, and galling throughout the instrument’s service life.
ME-92 is Armoloy’s medical-grade version of its proprietary Electrolizing® Thin Dense Chrome coating. Like Electrolizing, it features a proprietary microcracked chromium surface that improves lubricity, corrosion resistance, and wear performance while maintaining precise dimensions. Unlike general industrial chromium coatings, ME-92 is certified to ISO 10993-1 and validated for reusable medical devices, surgical instruments, and other healthcare applications requiring biocompatibility and sterilization compatibility.
Armoloy also offers BIO TDC®, a medical-grade, micronodular thin dense chrome coating optimized for applications where edge retention and cutting performance are primary requirements. For aluminum medical components, AL-COAT® provides a biocompatible thin dense chrome coating engineered specifically for aluminum substrates. Not sure which biocompatible coating is right for your application? Contact our engineering team for guidance.
Medical chromium coatings may be evaluated against standards such as ISO 10993-1, USP Class VI, and applicable SAE AMS specifications. Depending on the application, manufacturers may also perform cytotoxicity, hemolysis, systemic toxicity, adhesion, corrosion, wear, and sterilization compatibility testing to validate coating performance.
Biocompatible chromium coatings help reduce friction, resist galling, improve wear resistance, and protect against corrosion caused by repeated cleaning and sterilization. Thin, uniform deposits also help preserve sharp cutting edges, close tolerances, and articulating surfaces without significantly altering component dimensions.
It depends on the device design, substrate material, regulatory requirements, and intended clinical use. Medical manufacturers evaluate coating performance, biocompatibility, and applicable regulatory requirements for each application before specifying a chromium coating for implantable devices.
When evaluating medical coating providers, manufacturers typically consider biocompatibility testing, dimensional control, process consistency, inspection capabilities, sterilization compatibility, quality documentation, and experience supporting medical device production. A qualified supplier should provide repeatable coating performance, engineering support, documented process controls, and quality systems appropriate for regulated medical manufacturing. For applications requiring biocompatibility, sterilization resistance, and precision dimensional control, contact Armoloy’s engineering team to help evaluate whether ME-92 is the right solution.
