Injection Stretch Blow Molding

WHAT IS STRETCH BLOW MOLDING

Did You Know?

Injection Stretch Blow Molding (ISBM) forms hollow plastic containers by first injection‑molding a preform, then reheating, axially stretching, and blowing it in a cooled mold to create a biaxially oriented container. Biaxial orientation improves clarity, stiffness, and gas barrier—defining modern PET beverage packaging.

At-A-Glance Facts:

  • Main families: 1‑step (inject‑condition‑stretch‑blow on one machine), 2‑step (reheat stretch blow from cooled preforms), and 1.5‑step hybrids
  • Where used: Water, CSD, juices, edible oils, dairy, and many PET jars; ISBM is the dominant route for PET bottles
  • Why PET: Biaxial orientation gives light‑weight, high top‑load, and better CO₂/O₂ barrier relative to non‑oriented articles

Process Variants

What changes, what stays the same

1‑step ISBM

Preforms are injected, temperature‑conditioned while still on the machine, then stretch‑blown—useful for wide‑mouth jars, specialty shapes, and lower volumes.

2‑step (Reheat Stretch Blow)

Preforms are cooled, stored, then IR‑reheated, stretched with a stretch rod, and blown on a rotary wheel for high throughput; the reheating aims just above PET Tg (~75 °C) to enable orientation.

1.5‑step

Hybrid lines inject more preforms than blow cavities and use a “cool‑parison” transfer, merging some advantages of 1‑ and 2‑step in a compact layout.

How It Works

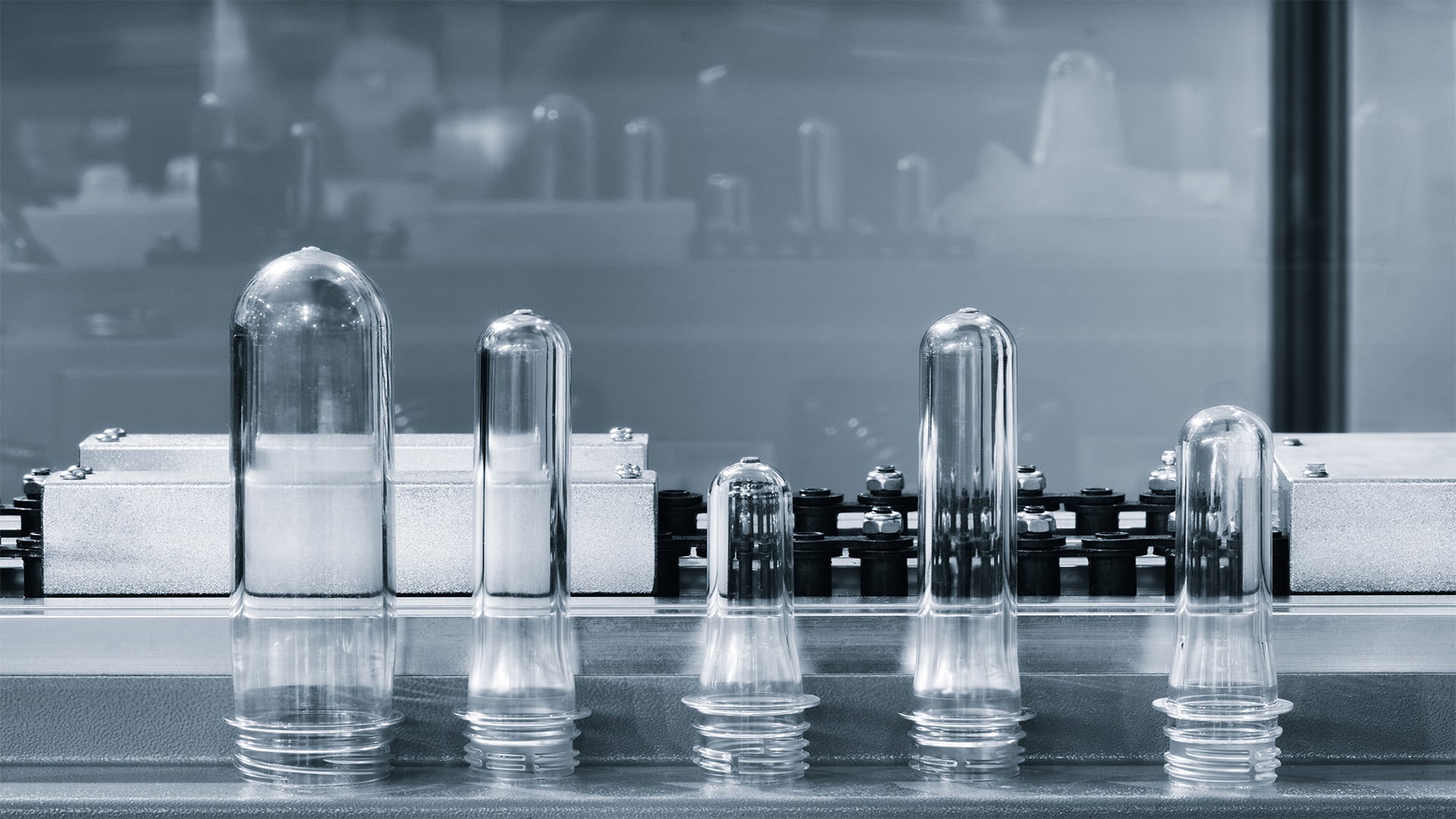

1. Preforms are unscrambled and IR‑reheated to a tailored axial/hoop temperature profile

2. A stretch rod extends the preform axially while pre‑blow starts inflation

3. High‑pressure blow expands the preform to the mold walls (biaxial orientation)

4. Cooling fixes shape; bottle is ejected for downstream handling. Typical high‑pressure is in the ~35–40 bar range for many PET bottles

Typical Defects (and where they come from)

  • Pearlescence / whitening: Over‑stretch or too‑cold material during drawing
  • Haze: Improper reheat profile or insufficient orientation
  • Base stress‑cracking (CSD): Concentrated stress in amorphous base/gate zones aggravated by load, environment, or handling. Dry resin (<0.005% moisture) and proper distribution help minimize risk

Energy & throughput (air matters)

Modern ISBM platforms employ multi‑stage air recycling to route exhaust high‑pressure air to pre‑blow/pneumatics, cutting HP air use by ~20% in some designs. Utilities programs document additional savings at scale with recovery retrofits

Surface Engineering Options

Siloed by what you’re seeing on the tool (symptoms) so you can choose the right surface solution.

Start with the question: did the metal fail, or is it failing?


In injection stretch blow molding, symptoms like sticking on core rods/stretch rods, scuffing on neck rings, wear on sealing/parting features, and heat-driven seam or clarity defects are the bridge between performance issues and root cause.

Metal failures we target

Performance failures we target

  • Sticking / adhesion / buildup that disrupts cycle consistency
  • Cosmetic defects (scuff, haze, marks tied to tool contact)
  • Frequent cleaning / short maintenance intervals
  • Heat-related quality issues (hot spots, seams, clarity/finish)

Important: “Armoloy-available treatments” are what we provide. “Other industry options” are common alternatives that may be supplied by other providers.

What you’re seeing (symptoms) Likely failure mode Armoloy-available treatments Other industry options (not offered by Armoloy) Benefit focus
Sticking on core rods or stretch rods; material pickup; higher ejection force; cycle-to-cycle variability Friction + adhesion (buildup) on sliding/contact surfaces; sometimes roughness or chemistry accelerates pickup Electroless Nickel + PTFE (EN-PTFE) (where specified)


Helps reduce adhesion and friction that can drive sticking, buildup, and frequent cleanup.
High-Phos Electroless Nickel (ENP) (where specified)


Uniform barrier coverage where corrosion resistance and thickness control matter.

 DLC (PVD/PACVD)


Common low-friction option used by other coating providers to reduce adhesion and sliding friction.

 Performance failures

Sticking, downtime, cycle stability
Scuffing on neck rings / sealing features; surface marks tied to tool contact; wear tracks in high-load zones Adhesive wear (galling) + sliding wear; geometry change can amplify cosmetic defects and sealing issues Thin Dense Chrome (TDC)


Thin, uniform hard surface to mitigate wear and preserve critical geometry with minimal dimensional impact.
Surface engineering consult


We’ll validate hardness, friction behavior, and build to match the specific contact interface.

 CrN (PVD)


Often used as a hard, tough anti-galling thin film by external PVD providers.

 Metal + performance

Less wear/scuff, steadier finish
Edge wear on vents, sealing lands, or parting features; loss of definition leading to flash, seam issues, or inconsistency Abrasive wear and geometry loss on sharp/high-contact edges Thin Dense Chrome (TDC)


Hard, thin protection to help retain critical geometry where tolerance and fit are sensitive.

 Hard PVD films (e.g., CrN variants)


Common when an external thin-film provider is selected for edge protection.

 Metal failures

Wear mitigation / geometry retention
Staining, haze, pitting, or corrosion marks after cleaning/washdown; contamination-sensitive surfaces Corrosion initiation + roughness/buildup sites; chemistry + moisture accelerate attack Electropolish + passivation (where applicable)


Surface smoothing and corrosion-resistance restoration on suitable alloys to reduce buildup sites and improve cleanability.
High-Phos Electroless Nickel (ENP) (where specified)


Uniform barrier coating option when corrosion resistance and coverage are priorities.

 ASTM A967 passivation (industry standard process)


Often specified for stainless passivation (performed by qualified providers).

 Metal + performance

Corrosion control & cleanliness
Hot spots, seam/parting integrity issues, clarity or finish defects tied to thermal imbalance Thermal management limitation (heat extraction and stability), not always solved by a coating alone Surface engineering consult


We help confirm where a surface treatment helps, where it should be avoided, and how to protect critical areas without compromising heat transfer.

 High-conductivity copper alloys (e.g., MoldMAX® / AMPCOLOY®)


Common substrate/insert solution used to improve heat extraction in hot zones (material selection).

 Performance failures

Quality stability / seam integrity

How to use this section: Tell us the symptom, where it shows up (neck rings, core rods, stretch rods, sealing/parting features), the resin/additives, and your dimensional constraints. We’ll validate the best Armoloy-available treatment—or point you to a proven industry alternative when that’s the better engineering call.
